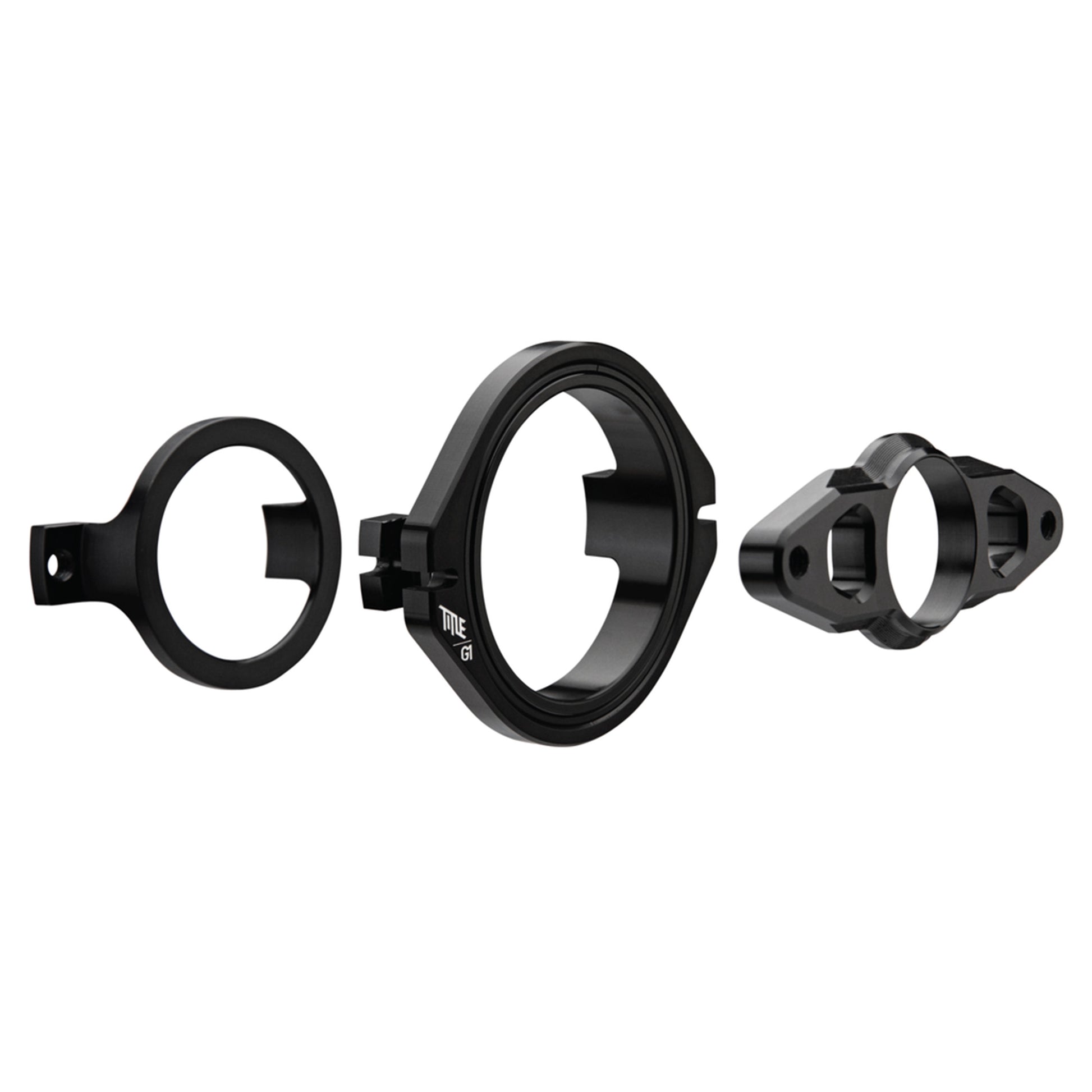

Title G1 Gyro Brake System
Title G1 Gyro Brake System
SKU: 661317988193
Share
Special Order Notice
Items in your order marked Ships in 10-14 Days are Special Order items, which means we have to order the item(s) for you from our supplier. Your whole order will be held until all items are in stock and will ship in 10-14 days.
If you are ordering other items which are in stock, you may wish to order those separately so they ship without delay.
Ships from Supplier Notice
This item will ship directly from our supplier in 1-3 business days.
Description
G1 SIZING AND COMPATIBILITY
SIZE SMALL:
Head tube outside diameter must be 54mm or less. Using a Vernier Calliper is the recommended way to make this measurement.
We recommend using with a frame that uses a press-in headset top cup. This will prevent any compatibility issues from using the G1 with different Gyro tabs.
If your frame does not use a press in top cup, you can use Gyro tabs that line up with the bottom of the small G1 (69mm) however, Gyro tabs are not included and may need to be customized to align with the width of the bottom of the Gyro.
Steer tube must have 20mm of extra length.
SIZE LARGE:
Head tube outside diameter must be 54mm or greater. Using a Vernier Calliper is the recommended way to make this measurement.
We recommend using with a frame that uses a press-in headset top cup. This will prevent any compatibility issues from using the G1 with different Gyro tabs.
If your frame does not use a press in top cup, you can use Gyro tabs that line up with the bottom of the large G1 (74mm) however, Gyro tabs are not included and may need to be customized to align with the width of the bottom of the Gyro.
Steer tube must have 20mm of extra length.
FEATURES
- MTB specific Gyro
- Made in Canada from domestic 6061 T6 machined aluminium.
- Low friction/high wear resistance machined Delrin bushing.
- Two sizes available (dependent on outside diameter of head tube)
- Available as a full system or Gyro only
INTENDED USE
- Dirt Jump/Slopestyle
- Skatepark/Street
RECOMMENDATIONS
- To ensure proper installation, watch the Title G1 Gyro set-up video.
- Recommended use of G1 cables and G1 lever for best set-up.
- Keep bushing lightly lubricated.
- Have installed by a professional
