Wheel Diameter | Hub Spacing | Internal Rim Width | Brake Rotor Type | Rim Material | Which Wheel | ID | ||
6 Bolt 12x100mm/9x100mm QR 24mm Aluminium 700c Front
![]() |
700c | 12x100mm/9x100mm QR | 24mm | 6 Bolt | Aluminium | Front | 40685018054701 |
Regular price
$629.95
Regular price
Unit price
per
Ships in 10-14 days
|
6 Bolt 12x100mm - 9x100mm QR 24mm Aluminium 650b Front
![]() |
650b | 12x100mm - 9x100mm QR | 24mm | 6 Bolt | Aluminium | Front | 41728474120237 |
Regular price
$478.95
Regular price
Unit price
per
|
Description

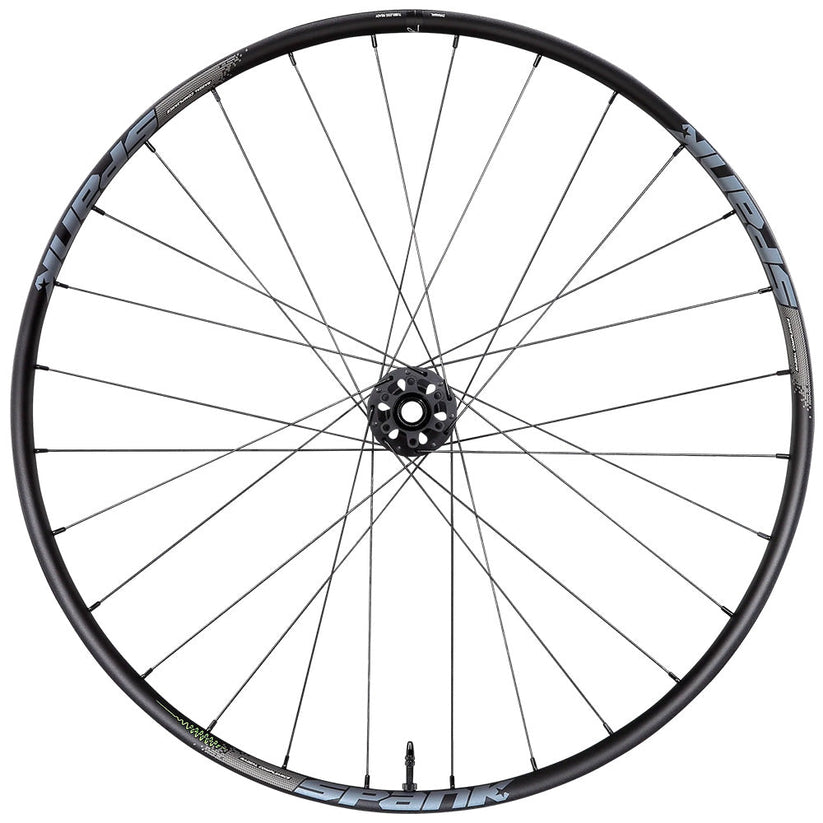

If you get your kicks with Adventure Riding, Gravel Epics or MTB Cross Country (XC) marathons, then you'll be looking for a reliable, lightweight front wheel that can provide improved comfort and reduced fatigue. Spank's Flare 24 Vibrocore complete wheel pairs the tubeless-ready Flare 24 Vibrocore clincher rim with the Hex Gravel front hub to bring you a disc-specific wheel that has been optimised for back-country epics.
The Vibrocore inner of the rim is claimed to reduce harmful vibration and improve the comfort of the rider whilst also increasing the fatigue life of the rim. The wide 28mm outer rim width and 24mm inner rim width combined with the low 16.5mm profile promote radial compliance of the wheel system which is said to improve traction and again, improve rider comfort. Tubeless performance and reliability, even at low pressures, are greatly improved thanks to the Bead Nip profile of the rim bead seats.
Made from a CNC optimized forged alloy body, the Hex Gravel front hub uses oversized sealed cartridge bearings and the Ø28 axle standard and adapters for adaptability between QR x 100mm (included), 12 x 100mm (included), and 15 x 100mm (available separately) front hub spacing and axle standards.
Who's this item for: Gravel, Adventure, XC riders looking for a front wheel that is reliable, durable, lightweight and comfortable. Be sure to check the front hub compatibility though, as these wheels are suitable for QRx100m and 12x100mm out of the box and require adapters to work with 15mm thru-axle.
Hub: Built around a Spank Hex Gravel utilizing the Ø28 oversized bearings with swappable end caps.
Materials: The SpankHex Gravel is a CNC Optimised forged aluminium body
Spoke hole count: The Spank Hex Gravel is a 28-hole hub
Convertibility: Comes with adapters to run QR x 100mm or 12 x 100mm. You can purchase additional adapters to run this wheel on a 15 x 100mm fork.
Bearing style / amount: Dual 6902 sealed cartridge bearings
Brake Type: Disc Only, 6-Bolt disc rotor.
What's in the box: Comes with adapters to run QR x 100mm or 12 x 100mm
Weight: The Hex Gravel front hub weighs 147g
Rims: The Hex Gravel hub is laced into a Spank Flare Vibrocore 24 rim
Tubeless: Definitely tubeless ready with tubeless tape and Presta valve already installed
Weight: 405g 650b/27.5" , 430g 700c/29"
Rim Dimensions: Outer rim width is 28mm with an inner width of 24mm and a low profile of 16.5mm
Materials: Spank claim the Flare 24 to be made from Dynamal Alloy
Spokes: J-Hook Tripple butted 2.2/1.8/2
Material: Steel
J-bend / Straight pull: J-Bend
Nipples:Spank DSN Alloy external nipples
Material: Aluminium
Lacing: 3-Cross lacing for excellent all-round performance
Wheel Weight: 755g 650b/27.5", 788g 700c/29"
What's in the box: 1 x Complete Wheel, 1 x Pair QR x 100mm end caps, 1 x pair 12 x 100mm end caps.
