Description
B-RAD (Be-Rad), Bottle Relocation and Accessory Device, is an innovative and extremely flexible system for organising on-bike bottle and accessory storage using bottle cage mounts. The system includes 3 different mounting bases, the B-RAD 2, 3 & 4, and a growing number of mountable accessories.
This product page is for the mounting bases. The rest of the B-RAD system accessories mount to these bases. See compatibility section below for dimensions.

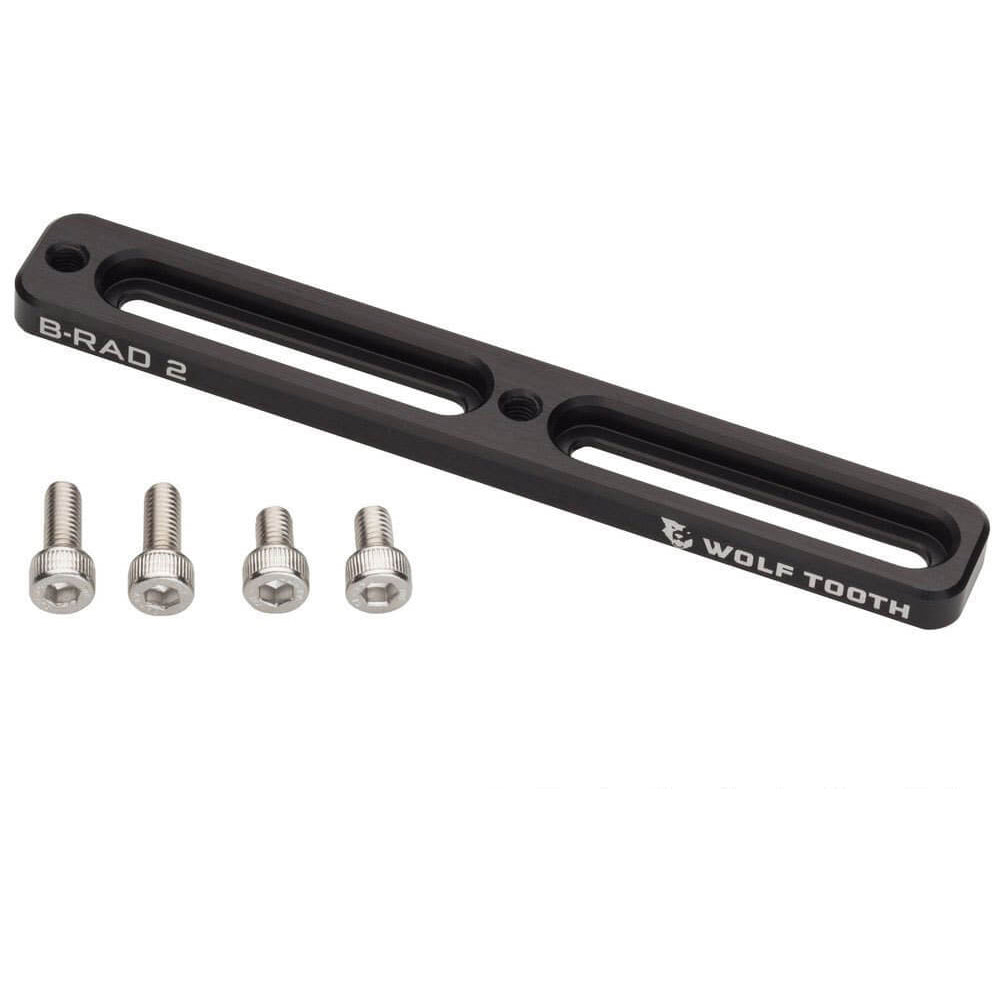

B-RAD 2
This 2 slot base with 2 threaded mounting holes is the shortest base designed for moving a bottle around to an optimal location on a smaller or dual suspension frames or to mount B-RAD accessories to an unused set of bottle cage mounts.
B-RAD 3
This 3 slot base with 4 threaded holes provides additional adjustment and mounting options vs the B-RAD 2. A typical application would be to mount a bottle cage in the forward threaded holes with a B-RAD accessory tucked behind it. Additionally, this mounts perfectly to triple bottle mounts on frames and forks. The B-RAD 3 includes zip ties, channels for the zip ties, and closed cell neoprene foam pad for secure mounting.
B-RAD 4
This 4 slot base is the longest base with 9 threaded holes for the ultimate flexibility and capacity when bike packing, touring, commuting or just exploring on 2 wheels. It's long enough to mount 2 smaller bottles inline or multiple accessories. The B-RAD 4 includes zip ties, channels for the zip ties, and closed cell neoprene foam pad for secure mounting.
Compatibility:
Print the last photo (pdf) in 1-1 format and you can cut out the different B-RAD mounting bases to see what fits on your bike.
Compatible with any frame that uses standard 64mm spacing bottle cage braze-ons (basically every modern frame).
Tech Specs:
6061-T6 aluminium brackets, stainless hardware, neoprene support pad with zip ties (B-RAD 3 and 4 only)
Weights (no hardware)
B-RAD 2 - 27g
B-RAD 3 - 41g
B-RAD 4 - 75g
18-8 stainless bolts included
Made in the USA
